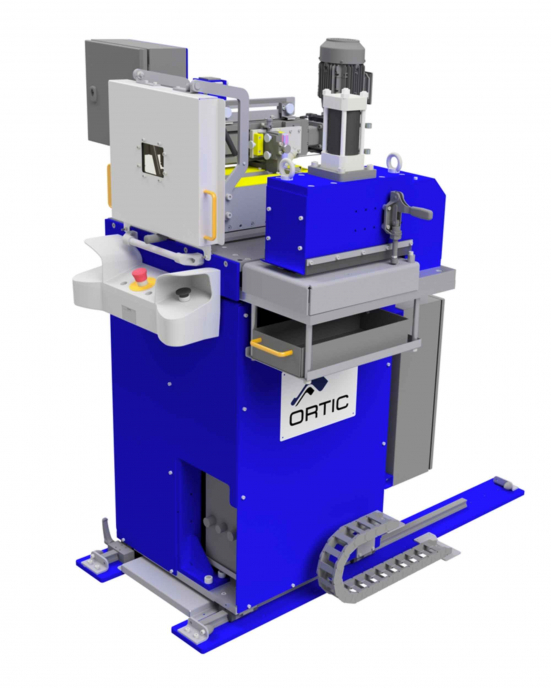

ORTIC 300 Band Welder – Efficiency and Precision for Increased Production Tim

The ORTIC 300 is a high-performance band welder designed to optimize your production process. With a cycle time of just 2 minutes to weld a 50 mm length, the ORTIC 300 minimizes coil changeover time, potentially adding up to one extra month of production time per year.

Specifications:

  • Max Sheet Width: 300 mm
  • Max Sheet Thickness: 2 mm
  • Power Supply: 400V, 16 Amps
  • Weight: 680 kg
  • Dimensions: 760 mm (W) x 1675 mm (L) x 1630 mm (H)

Features:

  • Motorized movement of the welding torch for optimal precision
  • Hydraulic unit and shears for accurate cutting
  • Stable sheet fixation during welding
  • Adjustable welding speed and power for different materials
  • High-precision TIG welding for superior results
  • Intuitive operator panel for easy and efficient control
  • Hand control and box for cut-off band pieces

Savings:

The ORTIC 300 speeds up coil changeovers, contributing up to 176 additional production hours per year. This streamlines production flow and reduces downtime.


Delivery and Warranty:

  • Delivery Time: Approximately 16 weeks
  • Warranty: 12 months (excluding wear parts)
  • Certification: CE-marked with a 2A certificate

Recommended Accessories (Optional):

  • Welding fume extractor for a safe working environment
  • Electrode grinder for precision work
  • Argon gas cylinder trolley for easy handling
