Flying Shear for Higher Production Speed and Precision

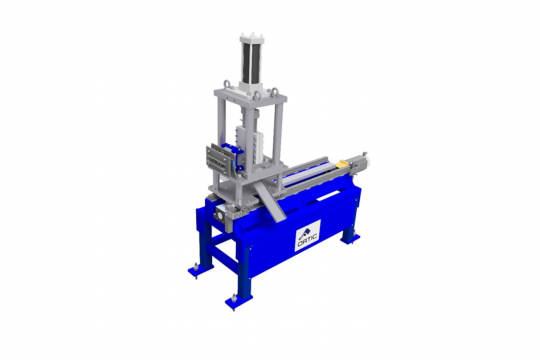

The ORTIC flying shear is designed to cut profiles to the exact length during the roll-forming process without reducing production speed. Using innovative flying cut technology, the shear matches the profile’s speed, enabling quick and precise cuts without disrupting the production flow. Once the cut is complete, the shear smoothly returns to its starting position.

Features:

  • Maximum profile width (standard): 200 mm
  • Maximum sheet thickness: 4 mm
  • Cutting speeds: 0–40 meters/min
  • Cutting tolerance: Depends on production speed; e.g., ±0.5 mm at approx. 15 meters/min. For higher precision, a punching tool can be used.

Functions:

  • Servo-driven lower unit for precise speed adjustment
  • Hydraulic unit for reliable cutting motion
  • Sensors for hole detection
  • Cassette solution for quick blade changes

Savings:

The flying shear enables production speeds 3–5 times higher than a stationary shear, depending on profile lengths. This results in both time and cost savings.

Delivery and Warranty:

  • Delivery time: Approx. 16 weeks
  • Warranty: 12 months (excluding wear parts)
  • Certification: CE-marked with 2b certificate

Recommended Accessories (optional):

  • Extra cassettes for handling multiple profiles
  • Additional blade and die

Other Options:

  • Available with or without a control system
