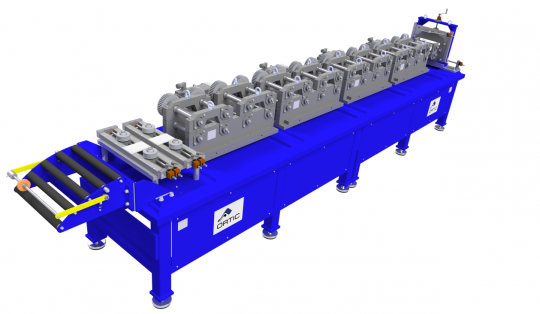

Ortic VV40: Roll Forming Machine for Optimized Production

The ORTIC VV40 is a powerful roll former designed to handle thicker sheets and more demanding manufacturing processes. With flexible cassette systems and individual speed control, the VV40 is an ideal solution for optimizing both productivity and precision.

Flexible cassette systems for various strip widths.
Individual speed control per cassette.
Quick straightener replacement for efficient production.
Lubricant management for extended operating time.

Step Up to Increased Production ⇢

⭐⭐⭐⭐⭐ 5/5

VV40 – A Powerful Roll Forming Machine with Flexible Cassette Change

The ORTIC roll former VV40 is a robust and powerful machine that elevates the forming process to the next level. Featuring a shaft diameter of 40 mm and the ability to handle sheet thicknesses from 0.5 mm to 2.5 mm, the VV40 is the perfect solution for demanding manufacturing processes. The machine achieves speeds of up to 40 meters per minute and offers high precision, flexibility, and productivity for various sheet metal applications.

Discuss VV40 with us ⇢

Customizable Cassette Changes for Optimized Production

The VV40 stands apart from the VV25 due to its advanced cassette system, which supports four different cassette types depending on your specific needs:

VV40 200: Cassette with fixed bearing housings for a strip width up to 200 mm.
VV40 300: Cassette with fixed bearing housings for a strip width up to 300 mm.
VV40 200 Flex: Adjustable bearing housing for a strip width up to 200 mm, allowing fine-tuning of gaps for optimal profile forming. These adjustments are recorded via a dial indicator on each forming pair for high precision.
VV40 300 Flex: Adjustable bearing housing for a strip width up to 300 mm, offering the same flexibility and dial indicator monitoring for precise profile forming.

This flexibility makes the VV40 an extremely adaptable machine that can be quickly reconfigured to meet varying production demands. Gap adjustments between forming pairs are performed quickly and accurately, ensuring an optimal profile every time.

Ortic VV40 – Your Production’s Best Friend!

With flexible cassette systems and individual speed control, the VV40 is an ideal solution for optimizing both productivity and precision.

↯

Individual Speed Control for Optimal Profile Quality

A unique feature of the VV40 is that each cassette is equipped with its own motor, enabling individual speed regulation for every cassette. This is especially useful when manufacturing thinner profiles, as speed adjustments between forming stations reduce the risk of wrinkling and ensure a high-quality finished product. This feature provides enhanced control and precision, making the VV40 an excellent choice for producing complex or delicate profiles.

↹

Quick and Easy Straightener Changes

To further improve production efficiency, the VV40’s straightener is also equipped with a cassette system, enabling quick replacement of straightening rolls. This simplifies product changes and maintenance tasks, helping to minimize production downtime.

↻

Lubricant Management for Extended Operating Time

The VV40 also includes an integrated lubricant management solution. A system surrounding the machine collects lubricant and returns it to a container beneath the machine bed. This streamlines maintenance work and ensures the machine can operate longer without interruptions, contributing to more sustainable and efficient production.

Why Choose VV40 from ORTIC?

The VV40 offers a powerful, flexible, and precise roll former designed to handle tougher production environments and thicker sheets. The flexible cassette systems, individual motors, and quick-adjust straightener provide full control over the forming process. No matter which profile you aim to create, the VV40 delivers both speed and adaptability to meet your specific needs while maintaining high product quality and minimizing downtime.
