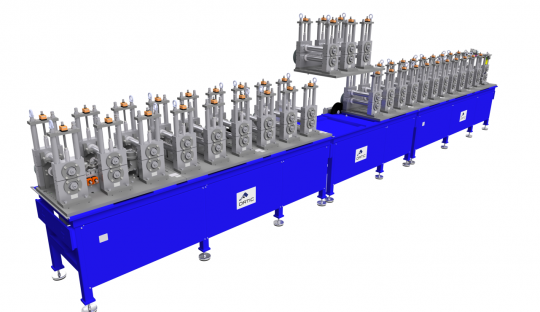

Ortic VV70: Roll Forming Machine for Thick Materials with Cassette System

The ORTIC VV70 is a powerful roll forming machine, ideal for businesses handling materials up to 4.0 mm thick. It offers high precision, fast cassette changes, and flexibility to boost production speed.

• Handles sheet thicknesses up to 4.0 mm with great accuracy.
• Dual motors for stable operation, even in heavy-duty production.
• Compatible with cassettes from VV50 and VV63 for maximum versatility.
• Optimized for quick cassette changes and easy adaptation to different profiles.

VV70 – A Powerful Roll Forming Machine for Thicker Materials

The ORTIC VV70 is a robust and reliable roll former specifically designed to handle thicker materials with precision. With a shaft diameter of 70 mm and the ability to process sheet thicknesses from 1.0 mm to 4.0 mm, the VV70 is the perfect choice for companies working with tougher materials and complex profiles. It features a maximum speed of 30 meters per minute and a strip width of up to 300 mm, making it ideal for demanding productions where high quality and efficiency are crucial.

Dual Drive Motors for Stable Operation and High Precision

Like the VV63, the VV70 is equipped with two drive motors powering three cassettes simultaneously, providing extra strength and ensuring the machine can handle heavier and thicker sheets with exceptional accuracy. These dual motors ensure a smooth and stable forming process, even under high loads or when producing wider or more intricate profiles.

Compatibility with Cassettes from VV50 and VV63

One major advantage of investing in the VV70 is that its machine bed is compatible with cassettes from VV50 and VV63. This means you can use the same machine bed for various cassette types, allowing easy switching between productions with different specifications. This flexibility maximizes the machine's utility and enables efficient adjustments to meet diverse production needs without investing in multiple machines

Precision and Flexibility in Forming

The VV70 delivers the same flexibility as the VV63 and is designed for quick cassette changes. This allows production to easily switch between different profiles without unnecessary downtime. The machine can also be tailored to specific needs, ensuring every formed profile meets the highest quality standards.

Optimized for Thicker Materials

With a sheet capacity of up to 4.0 mm, the VV70 is particularly suited for heavier production lines that use thicker materials. Its maximum strip width of 300 mm makes it ideal for companies manufacturing wider and more advanced products with demanding specifications. The sturdy design and adjustable features ensure the VV70 produces high-quality results even when working with heavy materials.

Straightener and Additional Features

Like the VV63, the VV70 can be equipped with a reinforced straightener, including a counter-bending function to ensure profiles are straight and defect-free. For product changes, the entire straightener can be replaced quickly to minimize downtime. The machine can also be fitted with extra features such as automatic deburring and lifting of the first forming pair to simplify threading of thicker sheets and ensure smoother handling in the production line.

Why Choose VV70 from ORTIC?

The VV70 is the perfect solution for companies working with thicker materials, requiring high precision and flexibility. With its capacity for sheet thicknesses up to 4.0 mm, dual drive motors, and a maximum strip width of 300 mm, the machine offers power, stability, and reliable results. Its compatibility with cassettes from both VV50 and VV63 adds extra versatility, making the VV70 a multifunctional tool for businesses that need to adapt production without investing in multiple machines. Whether working with wide, advanced profiles or heavier sheets, the VV70 provides the tools you need to maximize production capacity while ensuring consistent, high-quality results.
