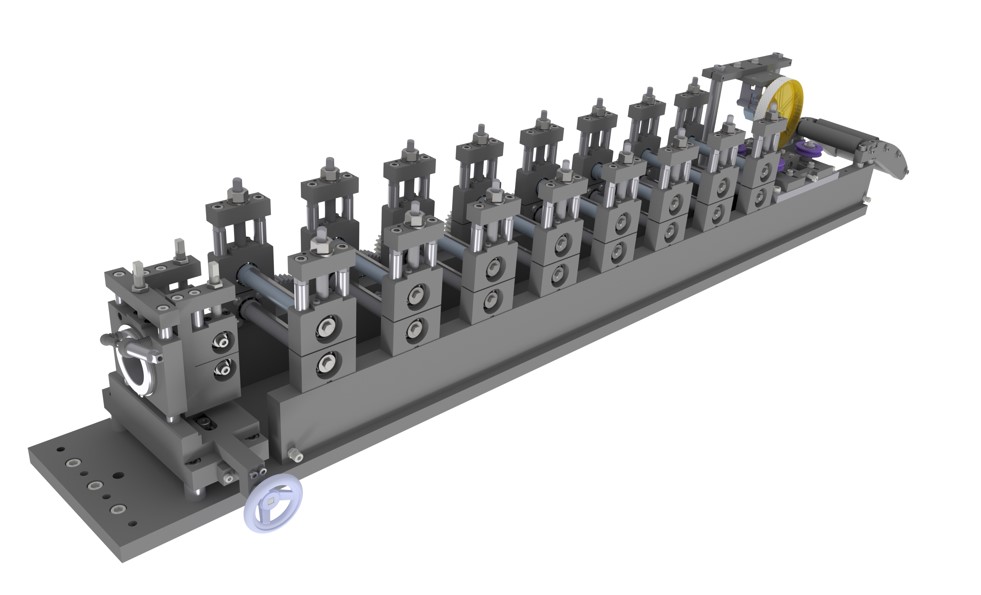

VV25 is one of our most advanced and complete roll forming cassettes, specially designed for precision and versatility in production. It handles sheet thicknesses from 0.1 mm to 1.0 mm, with a top speed of 50 meters per minute. With a maximum strip width of 150 mm, VV25 is ideal for narrower profiles and advanced forming applications. This cassette is a complete solution, including several integrated components:
Guide Quadrant: Ensures smooth material feeding without wrinkles.
Measuring Unit: Monitors feed length and speed to provide data for later steps, like cutting or bending.
Lubrication Plate: Efficiently collects and reuses lubrication.
Forming Shafts: Features a fixed lower shaft and an adjustable upper shaft, fine-tuned with screws for precision.
Straightening Unit: Ensures straight profiles with high product quality
The VV25 cassette is mounted on a base plate with precise punch holes, making it easy to position during product changes or maintenance. Its design enables fast setup changes, minimizing downtime and maximizing productivity.
