VV40 200 Flex

Our pre-configured roll forming cassettes are designed for easy product switching and smooth maintenance—perfect for efficient production.

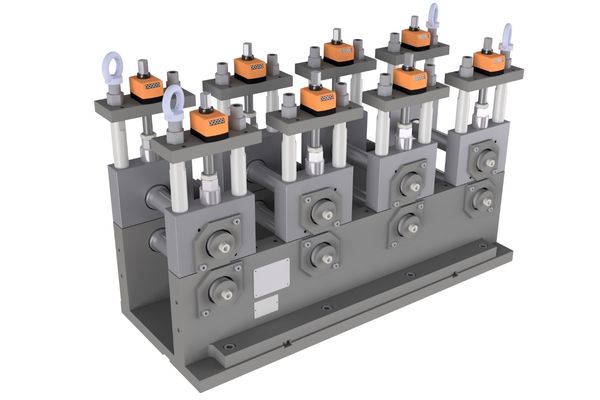

VV40 200 Flex builds on the sturdy base of VV40 200 but adds more flexibility with an adjustable upper shaft. This adjustment is made using a spindle screw, making it easy to fine-tune the shaft position for different sheet thicknesses or materials. A position indicator is calibrated to "0" at delivery to simplify resetting after adjustments.
Like VV40 200, the Flex model includes gear drive and pre-drilled holes for accessories. Its combination of durability and flexibility makes it perfect for varied materials and profiles where precision is crucial.
ORTIC VV40
  • Materialtjocklek: 0,5–1,5 mm
  • Max bandbredd: 300 mm
  • Max hastighet: 40 m/min
